Lab Category Request / Order Fields

Color	Purpose
Blue	The page content the wireframe is trying to convey.
Red	Descriptions of features shown in the wireframe for clarity.
Black	Web browser template

Purpose

A Diagnostic Request and Diagnostic Order form is created for each Lab Category. These forms are fully customizable to include any input that may be needed for a given Order.

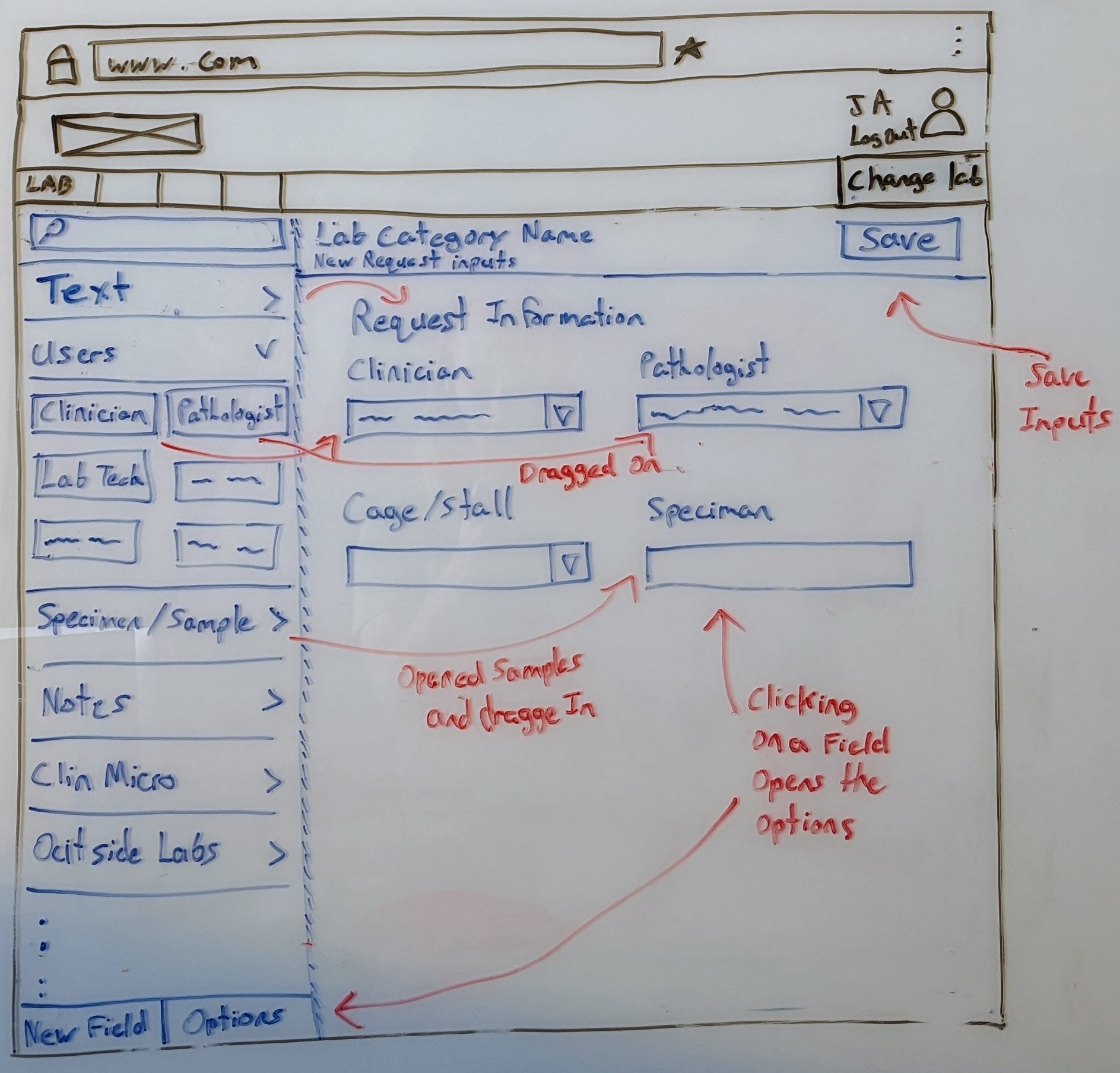

The page is broken into two distinct sections. The first, located on the left, is called Field Manager. The second, located on the right, is called the Form.

Field Manager

The Field Manager has two views. One to showcase all prexisting fields nestled within field groups. The other is to create new fields or update existing fields settings on the current Form.

Fields are stored in field groups for organization. Any field can be reused across the labs or Lab Categories. Reusing the same field allows reporting to link fields across labs or Lab Categories into a single column.

There is a search bar at the top of the Field Manager to quickly find a field or fields.

To add a field to the form: click-and-drag it from the Field Manager onto Form at the desired location.

Fields

When creating a field the Field Type must be set. This will determine what the field will look like and what settings are available. Some fields take in information from the user while others are ways for the form to be formatted.

Field Types

Below are a list of Field Types planned.

• User - Allows a user to select a user based on user filters like Role or User Type.
• Textbox - A simple single line textbox.
• Number - A simple textbox that only supports numbers.
• Checkbox - A simple checkbox.
• Radio Button - A group of single option radio buttons.
• Date - A date picker for just date.
• Date Time - A date and time picker.
• Heading - Adds a heading / title.
• Paragraph - Adds text to show the user.
• Spacer - Adds whitespace to improve visuals.
• Rich Text - Adds a rich text area for a user to fill out. (lets the user filling out the form bold, italicize, or otherwize format text)
• Drop Down - Adds a single or multi select drop down based on a dictionary.

Form

The form is what will be shown to the user that fills it out. It will support two columns to allow for certain fields to be side by side. Clicking on a field dragged on to the form will show the options in the Field Manager.

Saving a form will only update future uses of the Form keeping the older Orders intact.

Actions

This page allows a Lab Manager to create new fields to be used across any labs. The Lab Manager can update the Diagnostic Request and Diagnostic Order forms for future cases.

Related Wireframes

Name	Reason
Diagnostic Request	Where the form is used for this Lab Category.
Diagnostic Order	Where the form is used for this Lab Category under the Findings section of the Order.
